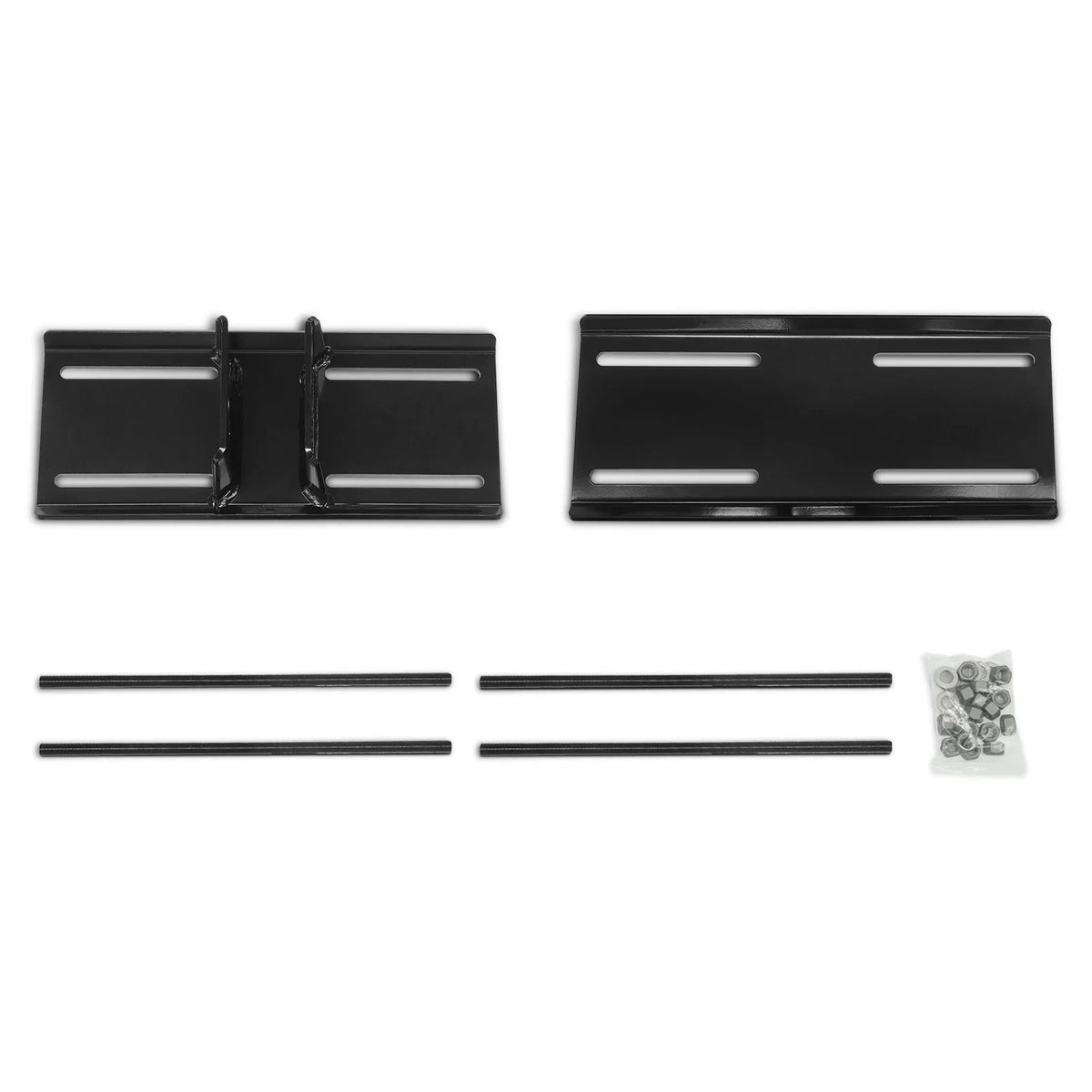

Tubular&Bent Beam Structure Mounting Bracket-Optional Accessory for Installation

Please make sure the following conditions are met before purchasing

Tubular&Bent Beam Structure Mounting Bracket

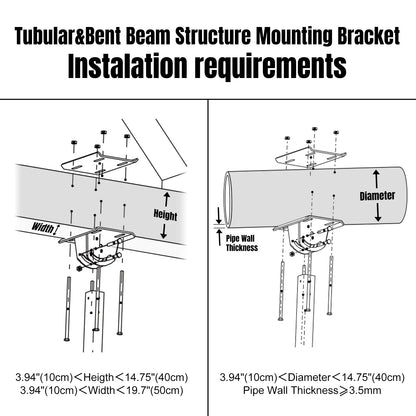

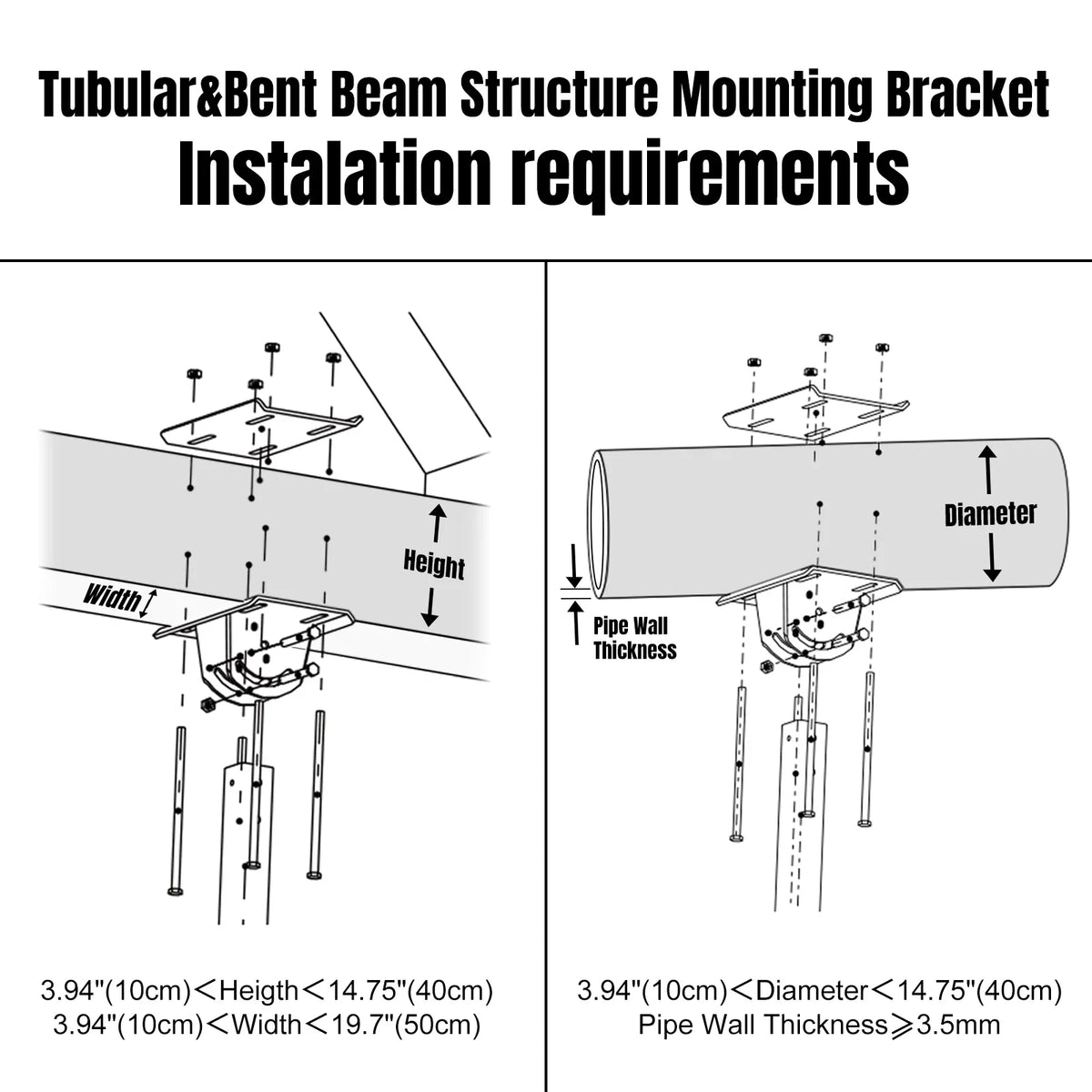

Installation requirements

Rectangular beam
3.94"(10cm)＜Heigth＜14.75"(40cm)
3.94"(10cm)＜Width＜19.7"(50cm)

Cylindrical beam
3.94"(10cm)＜Diameter＜14.75"(40cm)
Pipe Wall Thickness≥3.5mm

Suggested installation angle for wire rope (horizontal plane angle)45°±10%
