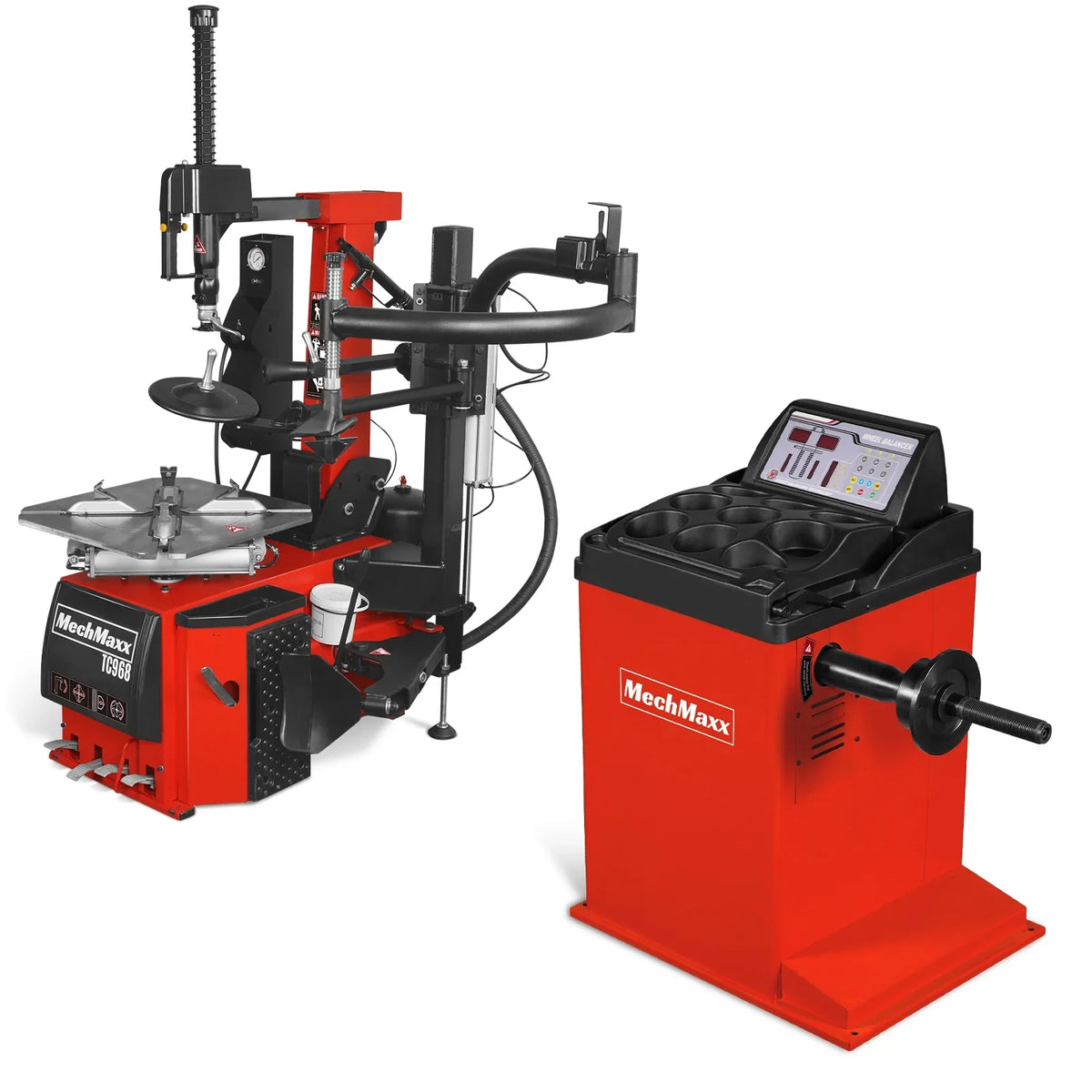

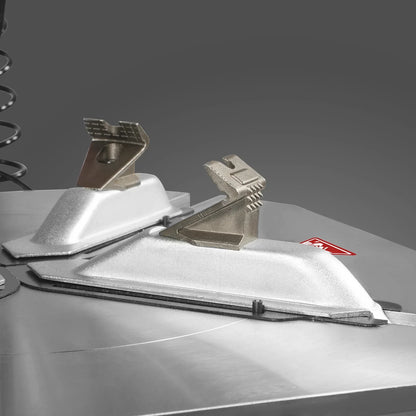

High Performance Tilt Back Tire Changer Wheel Balancer Bundle, TC9682, WB855

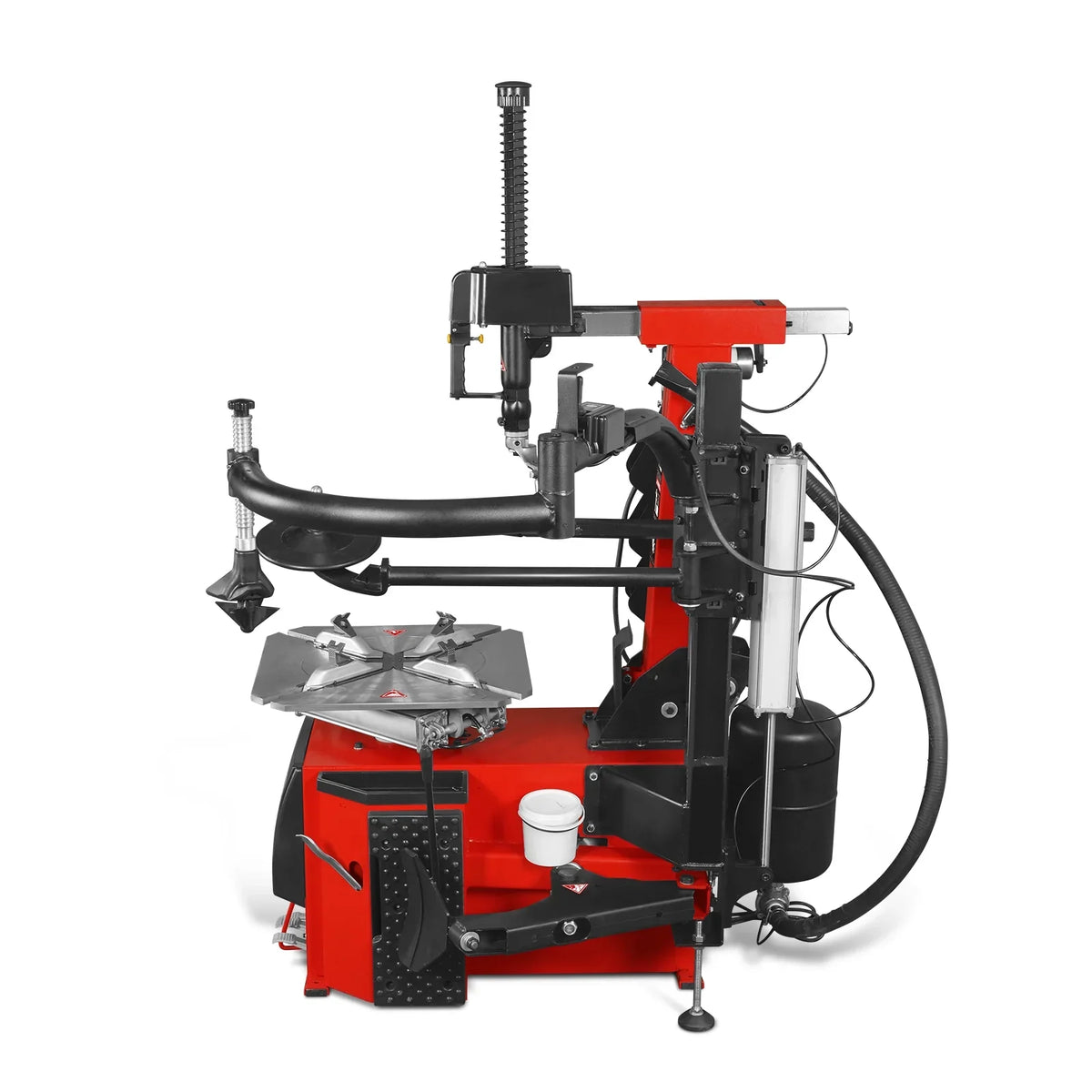

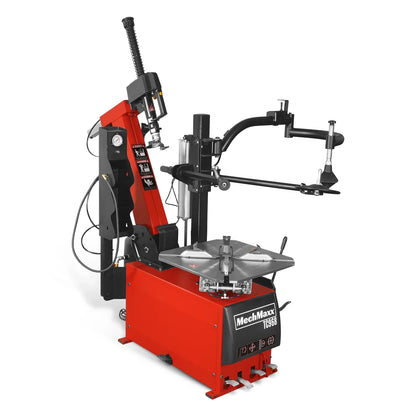

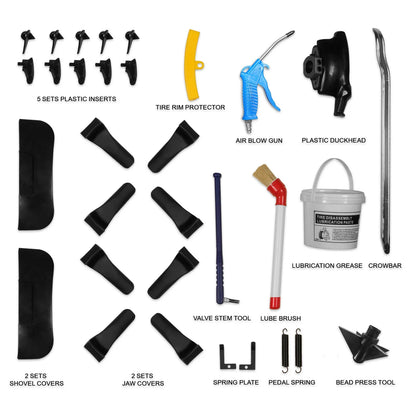

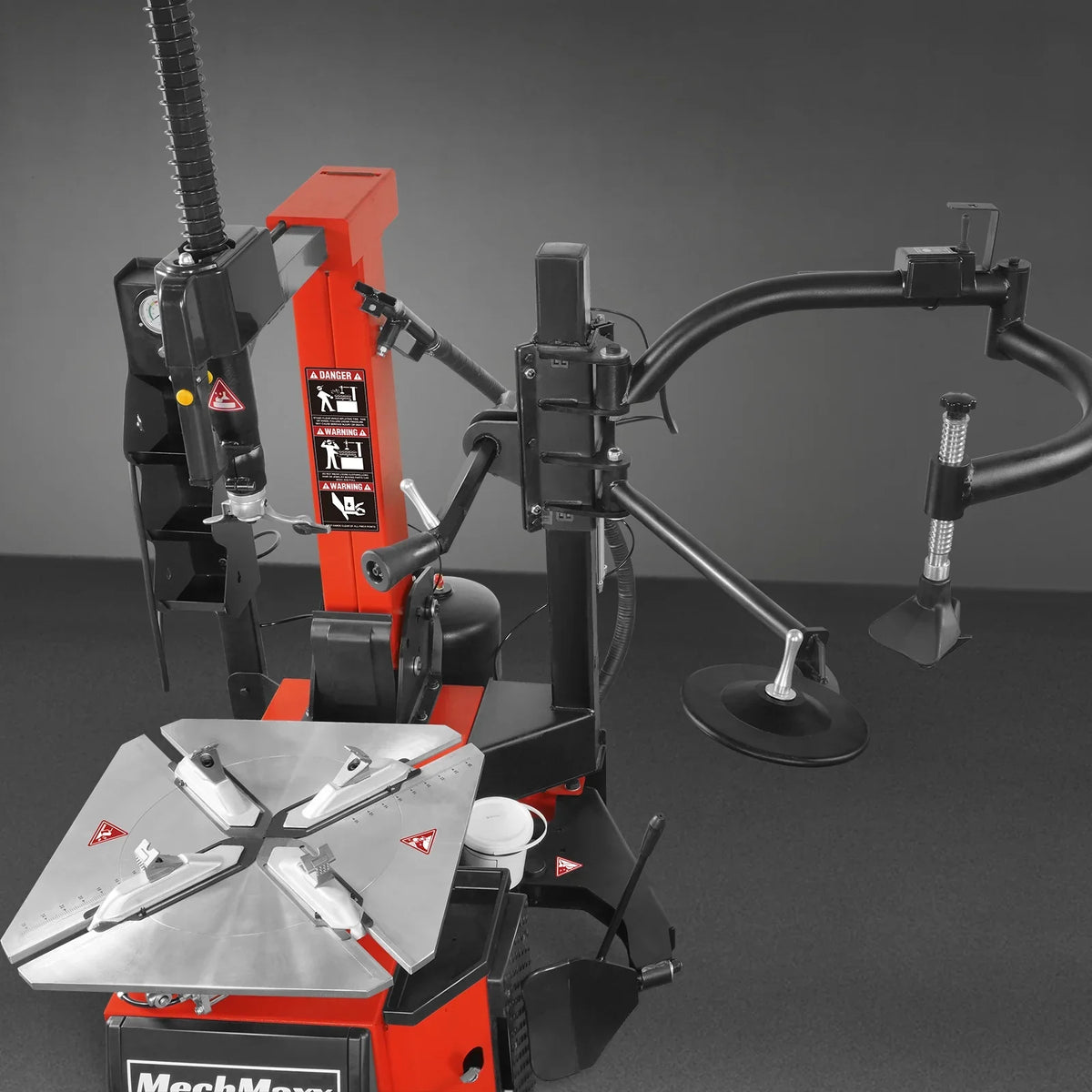

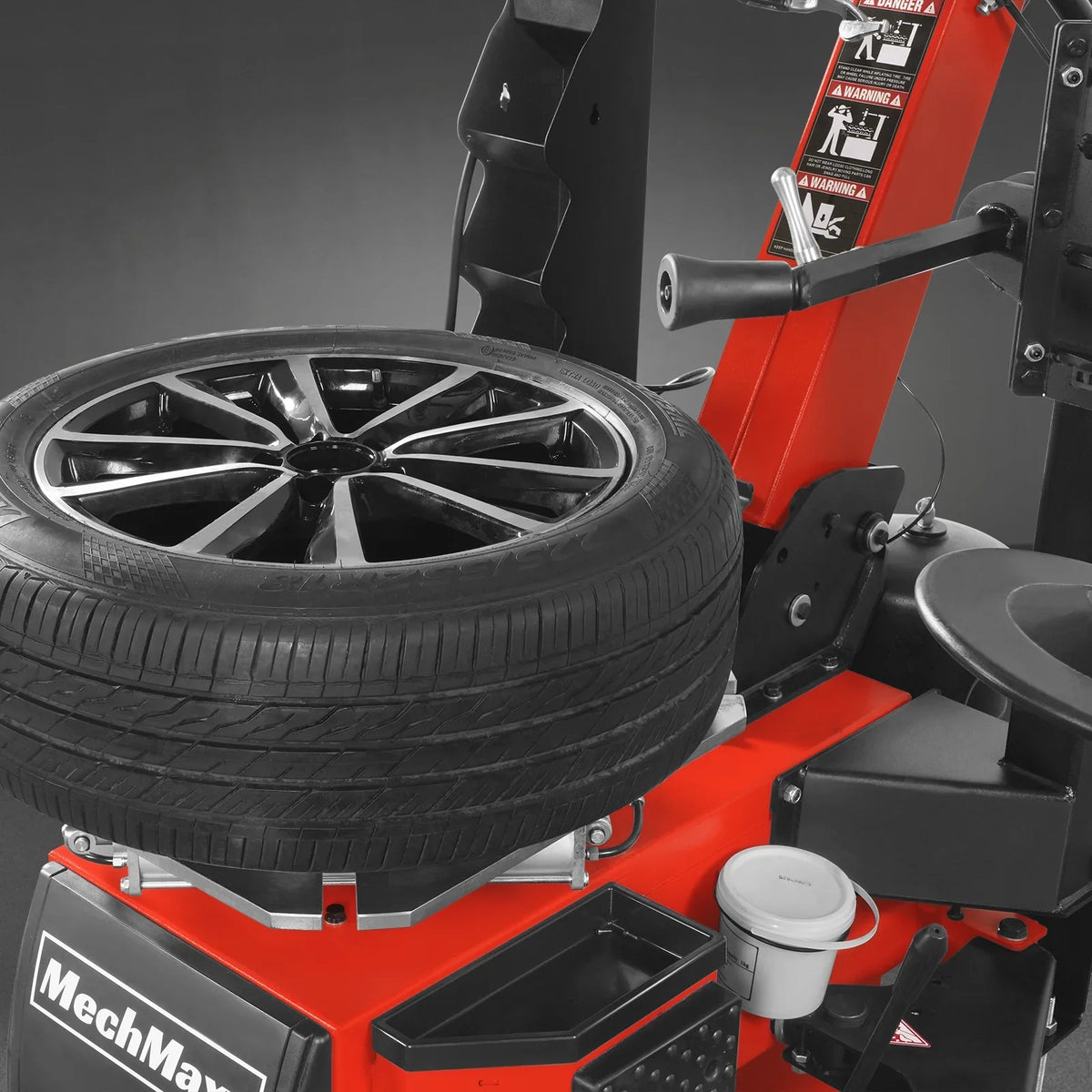

Tire Changer TC9682
| Voltage | 110v / 60hz / 1 phase | Bead Blaster | Hand Held Bead Blaster |
| Motor Power | 1.5 HP | Hex Shaft Locked Type | Pneumatic |
| Inside Rim Clamp Range | 14-26 in | Mount Head | Stainless Steel & Plastic |
| Outside Rim Clamp Range | 12-24 in | Inflator | Foot-controlled |
| Max Tire Diameter | 43 in | Motorcycle Adapter | Sold Separately, SKU: 200020 |
| Rim Width | 3-15 in | Packing | 2 x Plywood case |
| Working Pressure | 117-145 psi (8-10 bar) | Machine Packing Size (LxWxH) | 40 x 30 x 45 in |
| Bead Breaking Force | 6170 lbs | Assist Arm Packing Size (LxWxH) | 51 x 16 x 17 in |
| Type | Tilt Back | Machine Weight (N.W/G.W.) | 518/545 lbs |
| Help Arm | Right-side Assist Arm | Assist Arm Weight (N.W/G.W.) | 146/174 lbs |

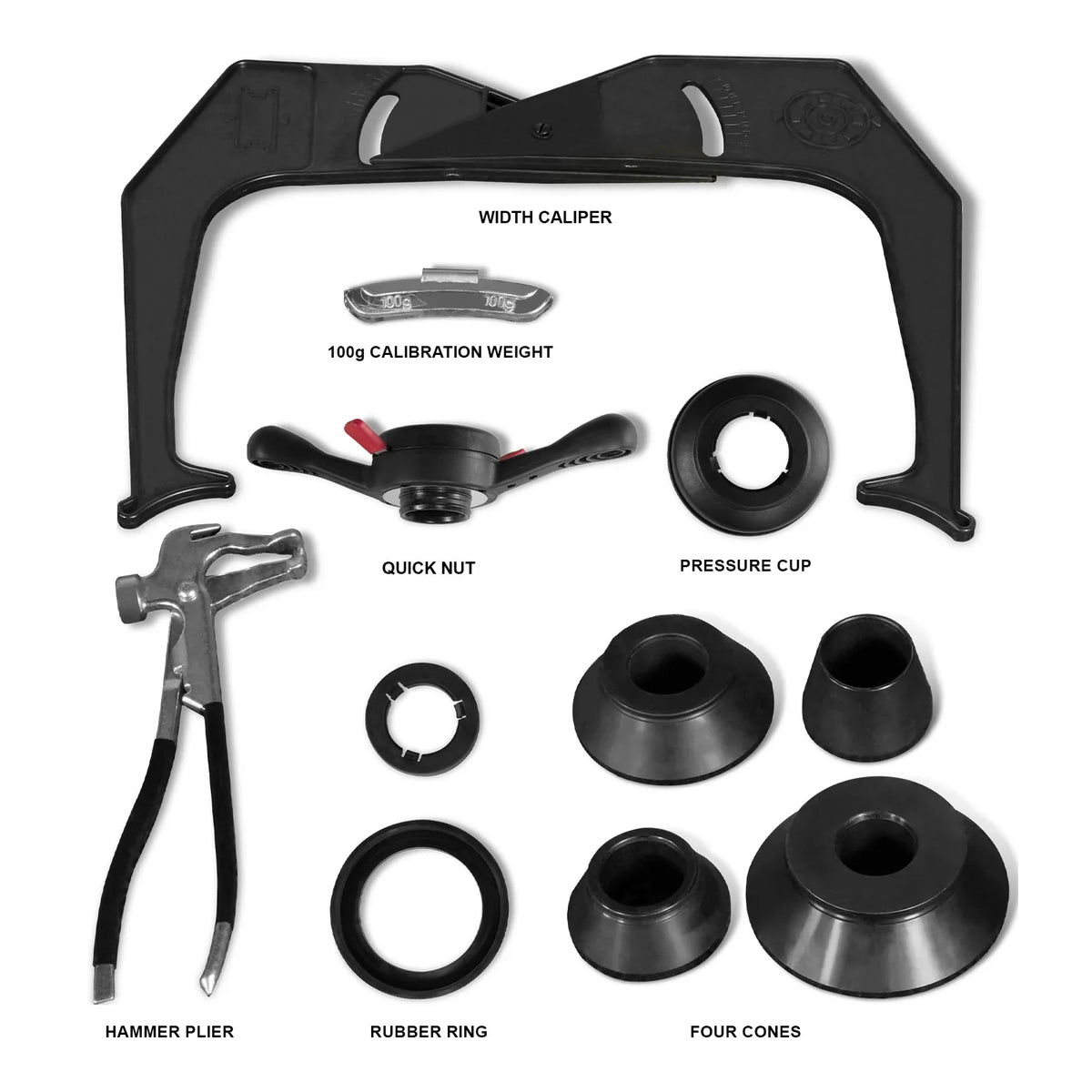

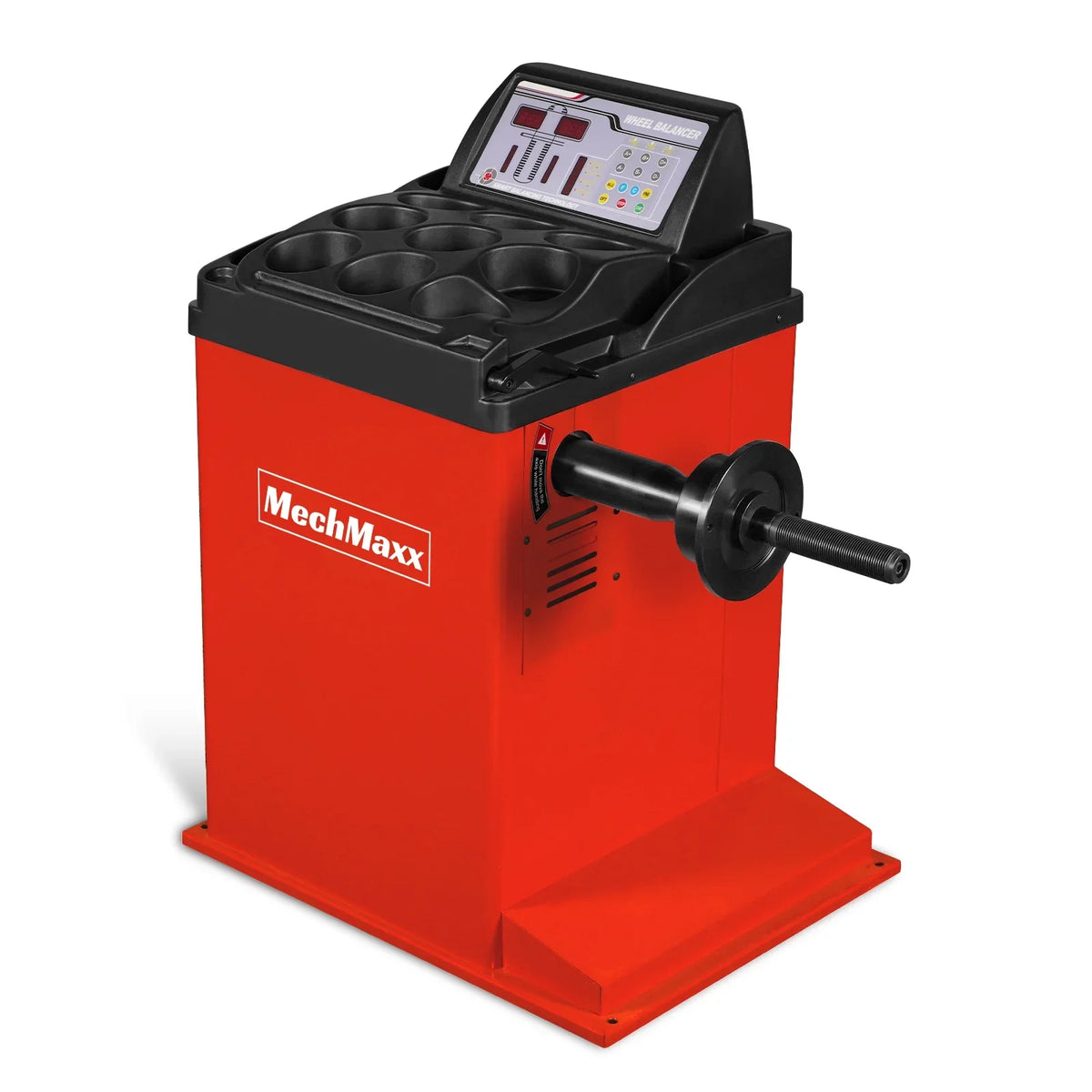

Wheel Balancer WB855
| Voltage | 110v / 60hz / 1 phase | Shaft Size | 40 mm |
| Motor Power | 1/3 HP | Calibration Wheel | Recommended 15 in steel rim wheel |
| Rim Diameter | 10-24 in | Motorcycle Adapter | Sold Separately, SKU: 200021 |
| Rim Width | 1.5-20 in | Truck Cone Kit | Sold Separately, SKU: 200022 |
| Max Tire Diameter | 40 in | Packing | Plywood case |
| Max Tire Weight | 154 lbs | Packing Size (LxWxH) | 35 x 26 x 45 in |
| Accuracy | ±1 gram | Weight (N.W/G.W.) | 157/231 lbs |
| Balancing Speed | 200 RPM |
WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soot, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
