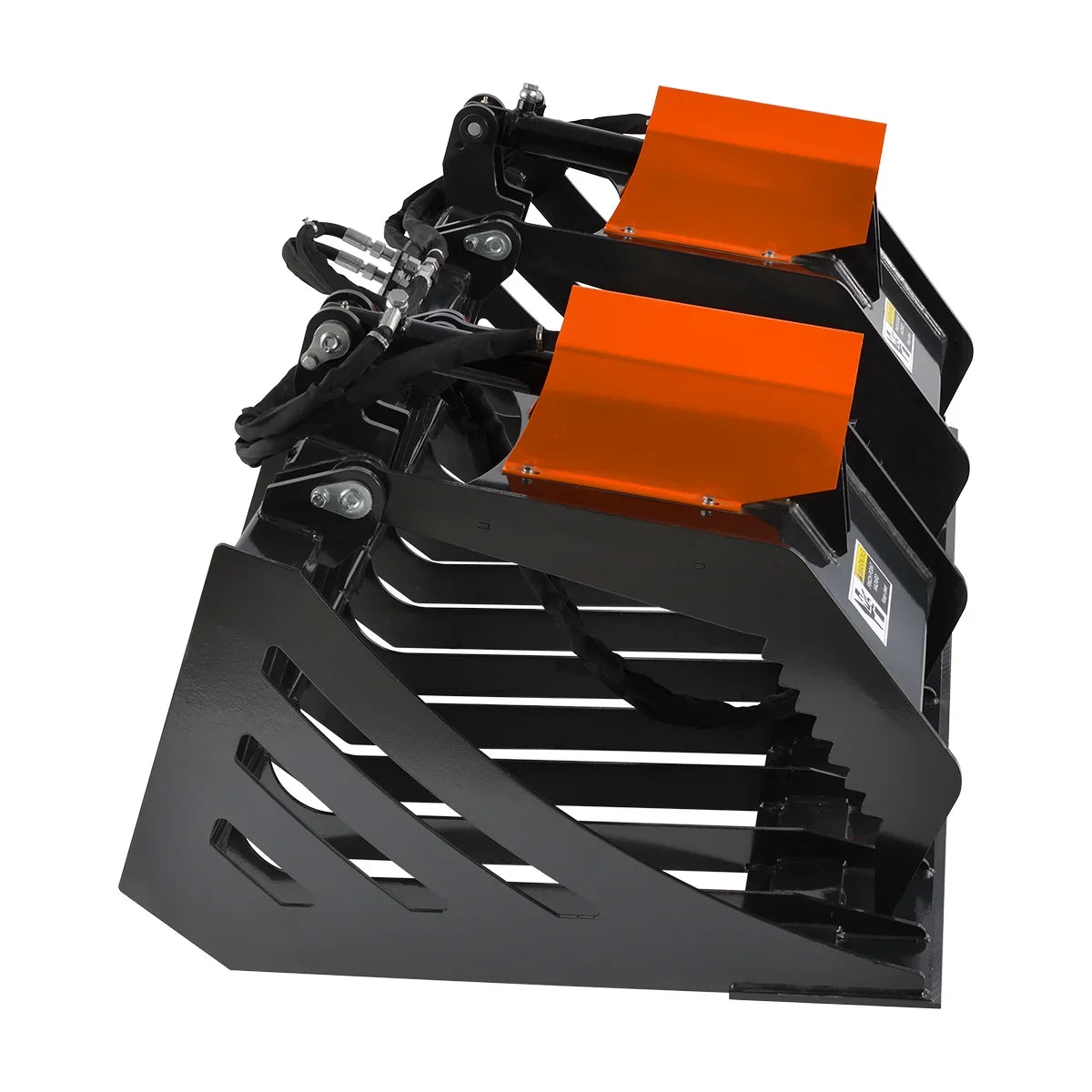

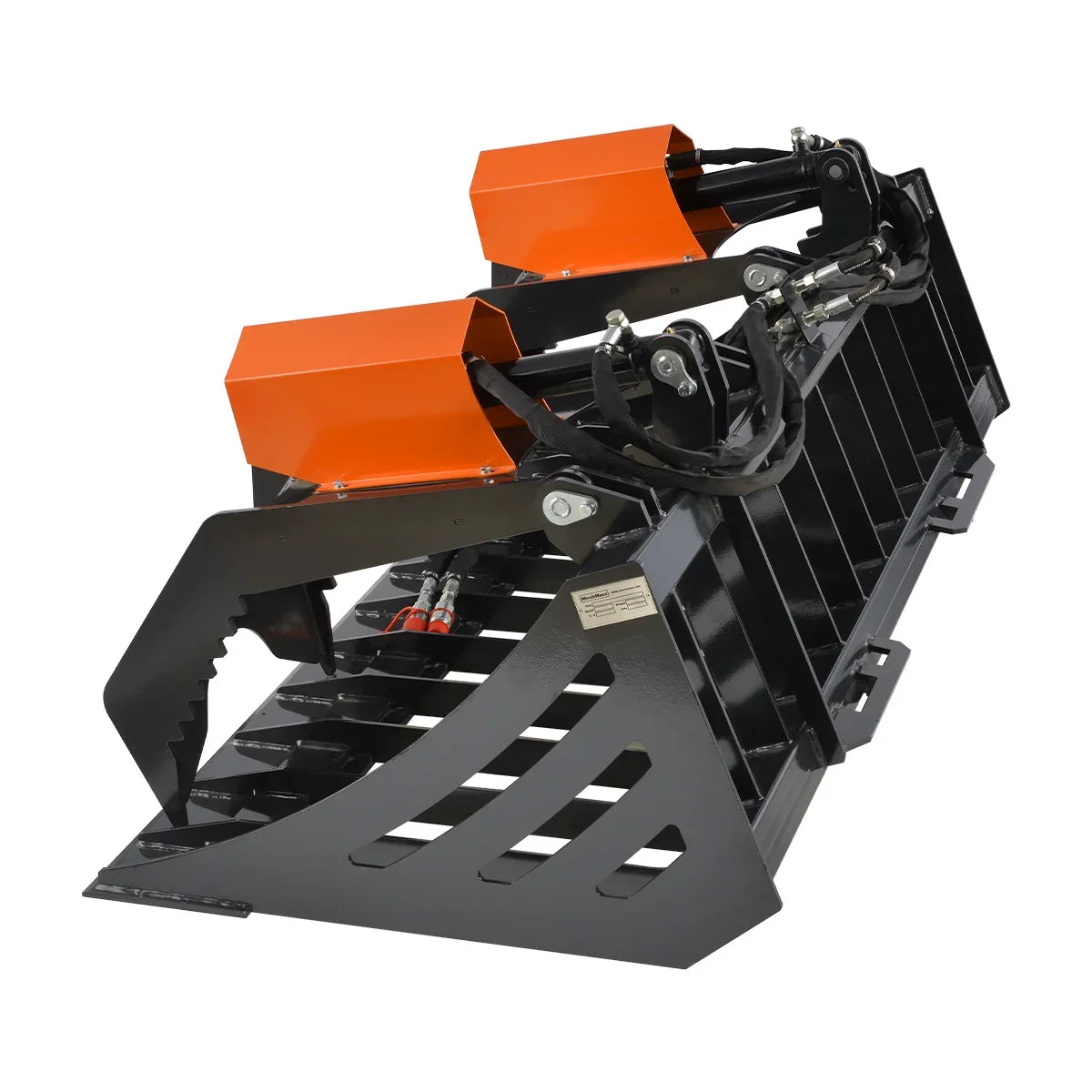

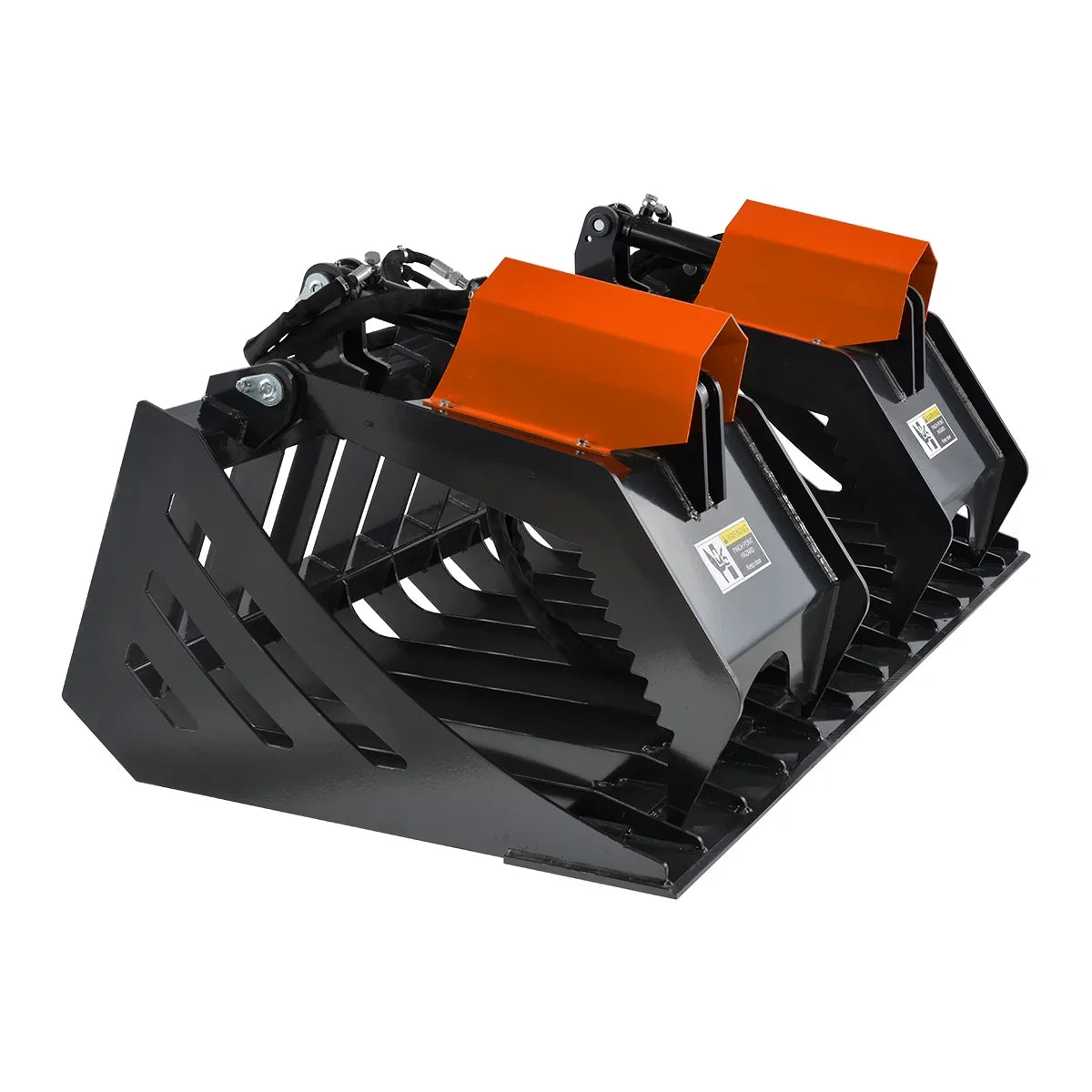

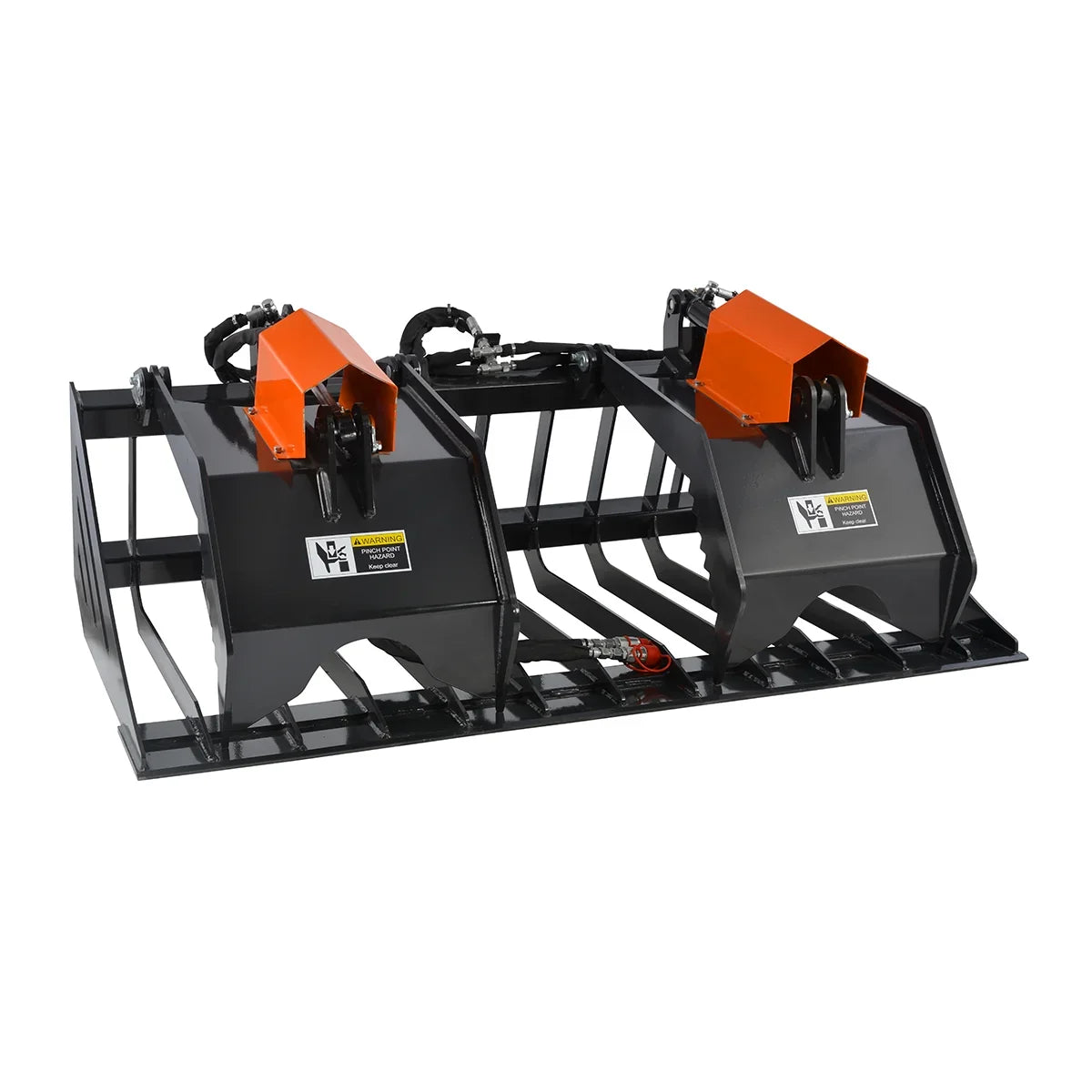

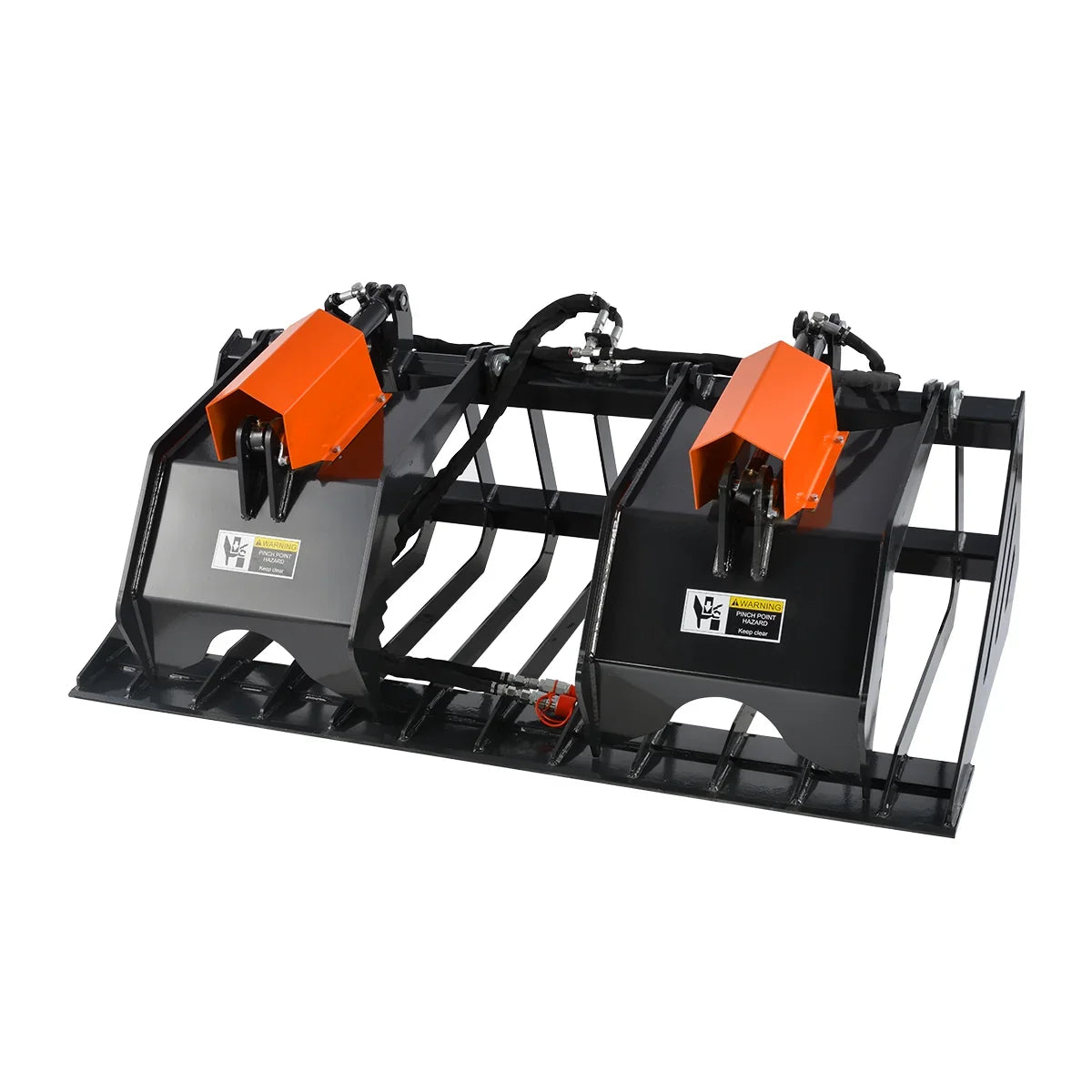

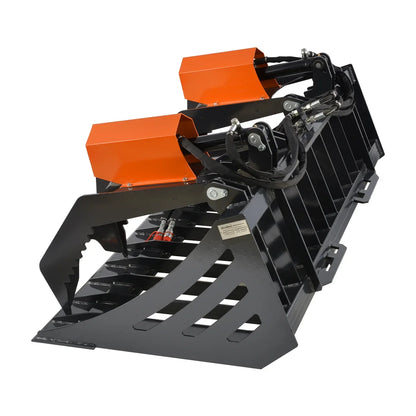

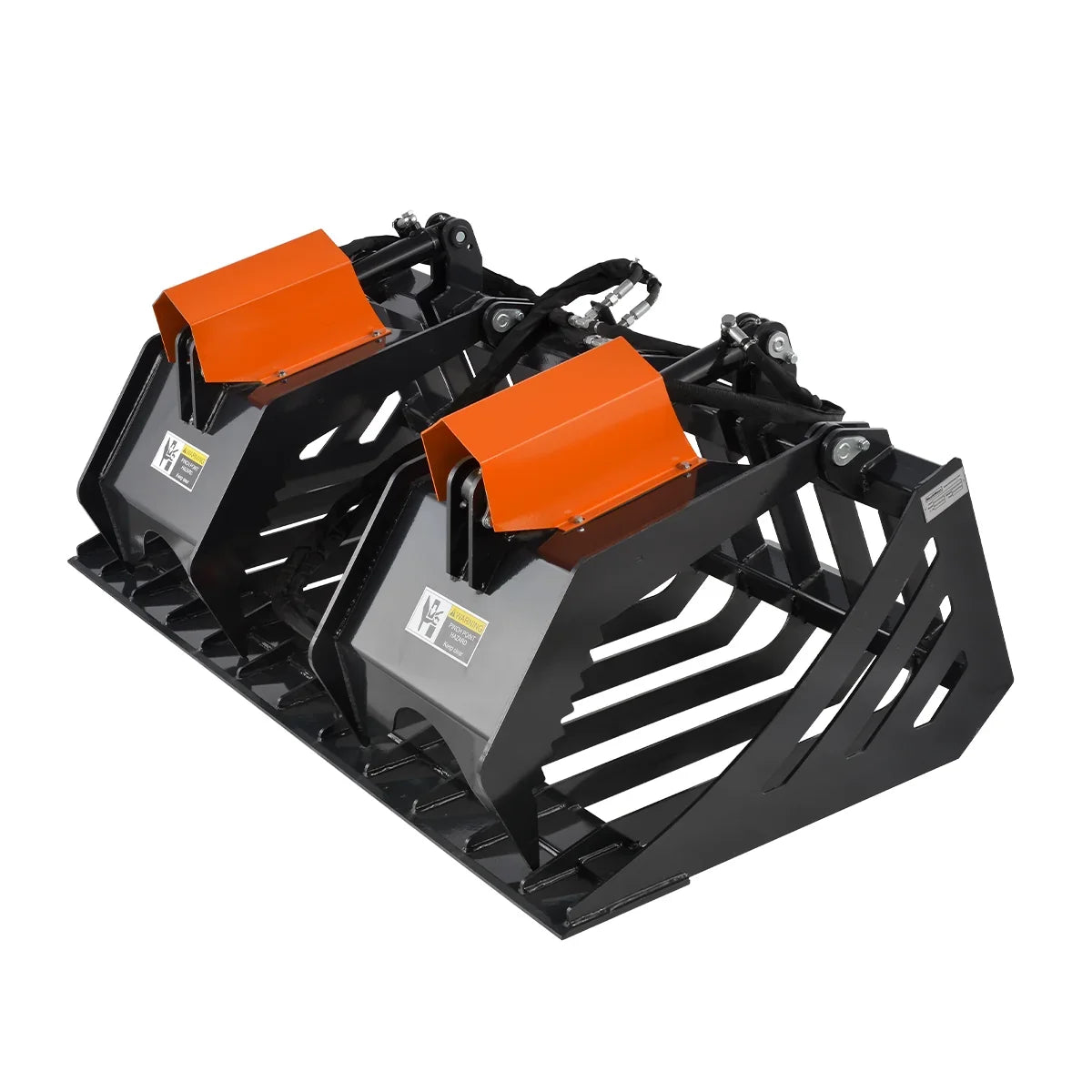

72” Skid Steer Skeleton Rock Bucket Grapple Rake, SSG72

72” Skid Steer Skeleton Rock Bucket Grapple Rake, SSG72

Sale price  $1,599.00 Regular price  $2,599.00
Skip to product information
72” Skid Steer Skeleton Rock Bucket Grapple Rake, SSG72

72” Skid Steer Skeleton Rock Bucket Grapple Rake, SSG72

Sale price  $1,599.00 Regular price  $2,599.00
Operating Pressure 2500psi-3050psi  Tine Thickness  0.5in
Working Width 72in Pitch of Teeth  6in
Grapple Width 20in (I.D.) Grapple Capacity 2500 lbs
Hydraulic Pressure 3000psi Finish Durable Powder Coated Finish
Working Capacity  17.7 ft³ Product Weight 692lbs
Opening Distance  42in Shipping Weight 827lbs
Bucket Angle 80.5° Product Size 76 X 40 X 28.5in
Hydraulic Cylinder Stroke  6.5in Package Method Iron Frame with Film
Hydraulic Cylinder Diameter 2in Packing Size 77 X 44 X 32in
Hydraulic Installation Distance 17in Warranty 1year
Tine Spacing  6in

WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soot, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
